Model

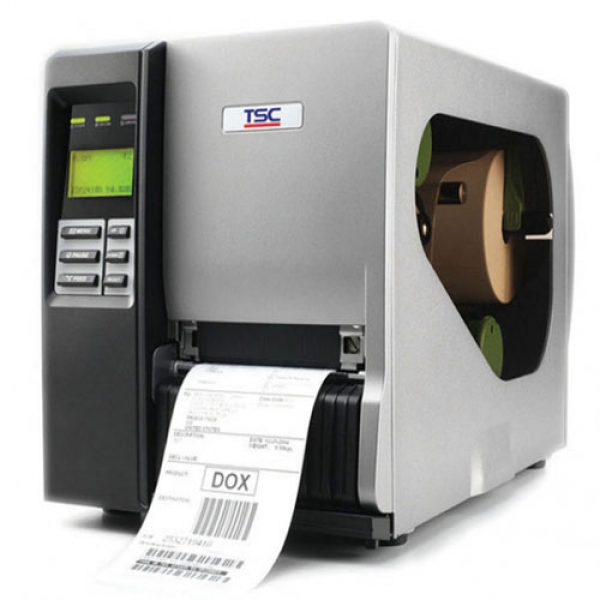

Tsc TTP-246m pro
Print resolution
12 dots/mm (203 DPI)
Print Speed
152 mm (6″)/second
Print width
104 mm (4.09″)
Print length
1,016 mm (40″)
Printing Method
Thermal Transfer & Direct Thermal
Display
LCD/LED, Graphic type, 128 x 64 pixel, with back light
Memory
SDRAM 8 MB, Flash 4 MB
Connectivity
• USB 2.0
• RS-232
• Parallel
Ribbon & Media Capacity
Ribbon capacity - 600 m long, max. OD 90 mm, 1″ core (ink coated outside or inside)
Ribbon width - 25.4 mm ~ 114.3 mm (1″ ~ 4.6″)
Media type - Continuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
Media width - 25.4 ~ 118 mm (1″ ~ 4.7″)
Media thickness - 0.06 ~ 0.30 mm (2.36 ~ 11.82 mil)
Media core diameter - 25.4 ~ 76.2 mm (1″ ~ 4″)
Media length - 5 ~ 1,016 mm (0.20″ ~ 40″)
Media roll capacity - 208.3 mm (8.3″ ) OD
